COLD CHAIN
TEMPERATURE
MONITORING
±0.3°C combined measurement uncertainty from NIST-traceable 5-point calibration accounting for sensor tolerance, self-heating, thermal gradient, and calibration drift; SHA-256 hash-chained sequential records with GPS-synchronised timestamps and X.509 device attribution for ALCOA+ and 21 CFR Part 11 and EU GDP compliance; MKT calculation per ASTM E1870 at 83.144 kJ/mol with stability budget and disposition recommendation; WHO PQS E006 vaccine monitoring; -80°C ULT and -196°C cryogenic silicon diode sensing; and HACCP CCP monitoring with shelf life prediction firmware.
The Engineering Problem
The Gap Between Measuring Temperature and Measuring It Accurately Enough, with Records That Regulators Accept, Is the Entire Engineering Problem
A ±1°C logger for 2-8°C pharmaceutical monitoring — a 6°C acceptable range — produces uncertainty intervals that overlap alarm thresholds at both extremes. After accounting for thermal gradient, self-heating, and calibration drift over a 12-month interval, as little as 1°C of margin may remain before measurement error triggers a false alarm. A logger with no audit trail generates records that a European GDP inspector will not accept as complete, original, and unaltered. A system that generates excursion alerts without MKT calculation, excursion duration, and stability reference data has provided data, not intelligence — and the quality team will manually calculate MKT while product approaches its remaining stability budget.
The biologics and ATMP pipeline is shifting commercial distribution toward products requiring 2-8°C or -80°C ultra-cold chain — displacing ambient small-molecule products whose logistics infrastructure tolerates monitoring errors that biologics cannot, demanding pharmaceutical-grade measurement uncertainty and GDP-compliant data architecture that most commercial cold chain hardware was never designed to provide. Food retailers and regulators are implementing digital HACCP temperature compliance throughout fresh produce supply chains, demanding shelf life prediction data from Q10 models in formats compatible with food safety management systems. The personalised medicine and home-based clinical trial wave is creating demand for patient home monitoring electronics that generate GDP-compliant records and communicate seamlessly with clinical trial management systems.
We design cold chain monitoring hardware from the regulatory compliance requirement and measurement accuracy specification outward — regulatory framework, temperature range, accuracy class, data integrity architecture, and MKT intelligence requirements first, then sensing technology selection, calibration architecture, alarm management logic, and manufacturing calibration process. Pharmaceutical cold chain technology companies, food and beverage logistics vendors, vaccine supply chain companies, clinical trial logistics providers, laboratory and biobanking companies, and cold storage technology vendors all need a cold chain electronics engineering partner with genuine measurement and regulatory compliance depth.
Cold Chain & Temperature Monitoring Categories We Build
From GDP-compliant pharmaceutical distribution loggers to WHO PQS vaccine cold chain monitors to HACCP food safety loggers to -196°C cryogenic silicon diode sensors — every temperature range, every regulatory framework, every application.
Pharmaceutical & Healthcare Cold Chain Monitors
Food Safety & HACCP Temperature Loggers
Vaccine & Ultra-Cold Chain Monitoring
Laboratory & Biobank Temperature Monitoring
Clinical Trial & IMP Cold Chain Monitoring
Refrigerated Transport Monitoring
Humidity & Environmental Condition Monitoring
Industrial Cold Storage & Warehouse Monitoring
Temperature Sensing & Calibration Architecture

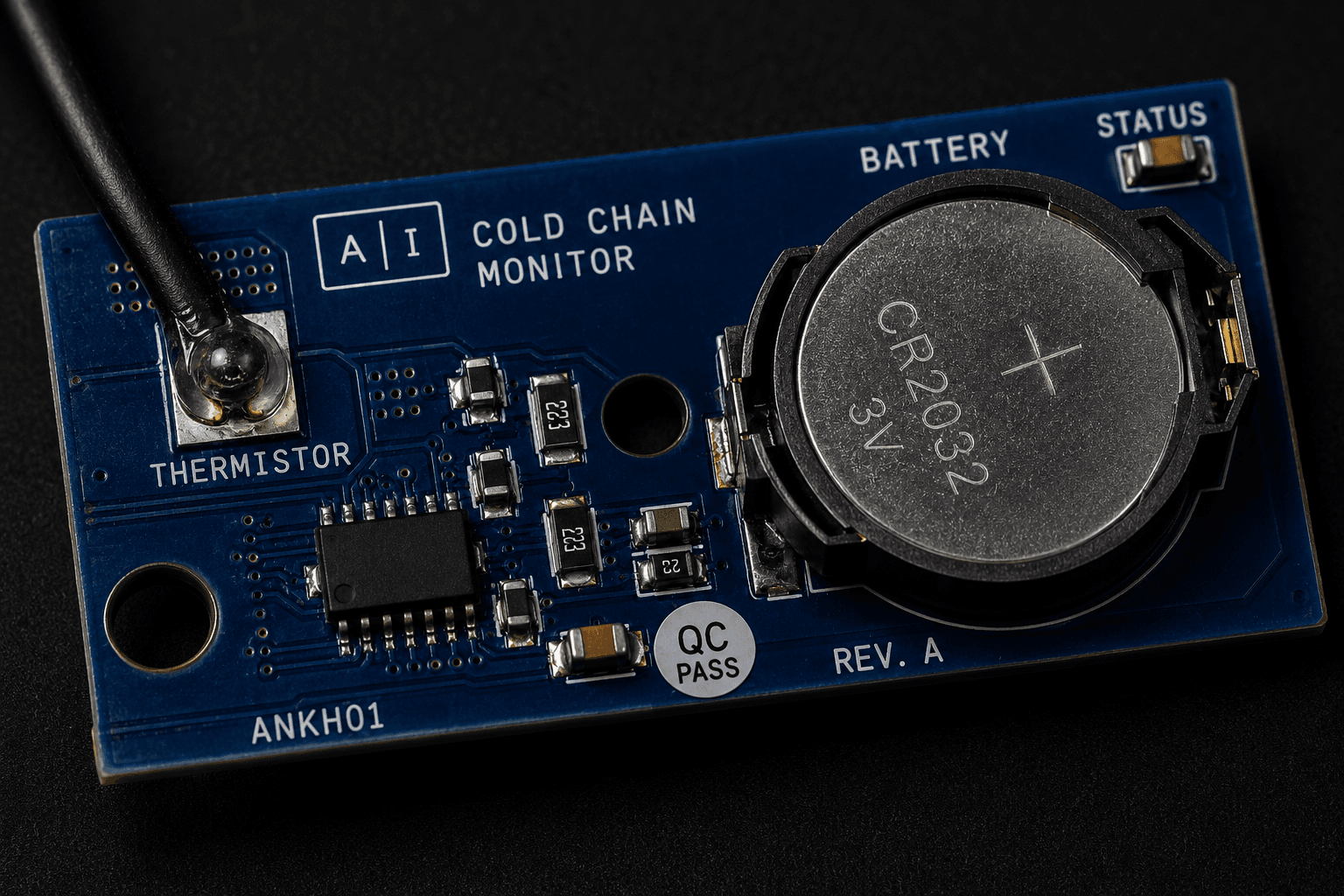

NTC thermistor signal conditioning with Steinhart-Hart three-parameter linearisation achieving sub-0.1°C resolution; Pt100 and Pt1000 RTD 4-wire measurement with 24-bit ADC for ±0.05°C uncertainty after calibration; digital sensor integration (STS40, STS41, MCP9808) with individual characterisation. NIST-traceable multi-point calibration across 3-5 reference temperatures; measurement uncertainty budget accounting for sensor tolerance, self-heating, calibration standard uncertainty, and drift over the calibration interval.
Humidity & Psychrometric Measurement
Capacitive polymer RH sensor conditioning (SHT40, SHT41, SHT45, HDC2080, HIH8120) with temperature correction for psychrometric accuracy; absolute humidity, dew point, and specific humidity calculation via Magnus-Tetens and Antoine equation methods; pharmaceutical compressed air dew point transmitter signal conditioning; chilled mirror dew point interface for primary-method laboratory reference comparison; and humidity sensor drift compensation from dual-sensor reference architecture.
Data Integrity & Regulatory Compliance
AES-256 encrypted flash storage with SHA-256 sequential hash chaining — each record contains GPS-synchronised timestamp, temperature reading, device serial number, calibration reference, and hash of the previous record, making tampering cryptographically detectable; X.509 device identity certificates provisioned at manufacturing for attributable cloud record upload; gap detection firmware flagging any discontinuity in the record chain; 21 CFR Part 11 compliant electronic record generation; and full EU GDP guidance 2013/C 68/01 ALCOA+ architecture.
Excursion Management & MKT Intelligence
Configurable alarm thresholds with hysteresis; pre-alarm warning temperature for advanced notification; excursion duration tracking from first threshold crossing to return within limits with millisecond timestamp accuracy; MKT calculation per ASTM E1870 at ΔH = 83.144 kJ/mol; stability budget remaining calculation referenced to product-specific stability data; multi-excursion accumulation firmware; and excursion report generation in signed PDF and structured XML with disposition recommendation for QMS import.
Communication & Platform Integration
BLE 5.x peripheral for smartphone data download and real-time monitoring; NFC Type 2 tag emulation for zero-power logger initialisation and data download; Wi-Fi for facility-based cold room platform connectivity; LoRaWAN Class A for wide-area cold store monitoring with multi-year battery life; LTE-M and NB-IoT for real-time in-transit alerting; GNSS position correlated with temperature timestamps for geo-tagged excursion location; and MQTT and REST API for QMS, ERP, and monitoring platform integration.
Alarm Architecture & Escalation
Configurable alarm thresholds per regulatory product requirement or quality specification; alarm delivery via SMS, email, push notification, and MQTT; multi-tier escalation for unmanned cold stores from on-call engineer through backup contact to facility manager; alarm acknowledgement with mandatory documentation for GDP compliance; SCADA and BMS alarm relay output; and false alarm prevention from measurement noise filtering and hysteresis tuning.
Cryogenic & Ultra-Cold Monitoring
ULT freezer monitoring at -80°C with low-temperature-characterised Pt100 sensors with calibration-validated accuracy; cryogenic monitoring at -196°C using silicon diode sensors (1.4K to 500K operating range) — the only technology with meaningful accuracy specification in the cryogenic regime; LN2 vessel level monitoring from differential pressure and capacitance sensors; dry ice sublimation monitoring from CO2 sensor and temperature correlation; mRNA vaccine ultra-cold chain monitoring from -60°C to -80°C; and vapour phase LN2 storage monitoring for embryo and tissue banking.
Manufacturing Calibration & Fleet Deployment
Automated production-line calibration fixture electronics achieving 480+ units per shift without becoming the manufacturing bottleneck; individual NIST-traceable calibration certificate generation for every production unit; automated calibration pass/fail assessment and correction factor upload firmware; unique device identity management from manufacturing through field deployment; fleet management platform API for large-scale logger deployment and monitoring; and GDP-compliant device decommissioning and end-of-life data export firmware.
Chipsets & Platforms
Platforms, ICs & Standards
Tested silicon and proven stacks — no experimental platform dependencies.
Pharmaceutical, Vaccine & Healthcare Cold Chain Monitoring
GDP Compliance. 21 CFR Part 11. ALCOA+ Data Integrity. MKT per ASTM E1870. WHO PQS E006. -80°C to -196°C.
A GDP inspector who finds a temperature logger storing data without an audit trail, generating records without device attribution, or producing timestamps not synchronised to a traceable time source will issue a critical finding regardless of whether the product temperature actually exceeded its acceptable limits. Most commercial cold chain hardware was designed for food industry traceability, not pharmaceutical data integrity standards. Ankh designs GDP-compliant 2-8°C pharmaceutical loggers with SHA-256 hash-chained ALCOA+ architecture; 21 CFR Part 11 compliant records; WHO TRS 961 Annex 9 performance-qualified design; ultra-cold chain monitoring at -60°C to -80°C for mRNA vaccine and ATMP products; cryogenic monitoring at -196°C using silicon diode sensors; and clinical trial IMP monitoring with combined GCP and GDP audit trail. MKT at ΔH = 83.144 kJ/mol integrates actual degradation over time — a brief 12°C excursion produces an MKT of approximately 5.3°C, not 12°C. Ankh builds this excursion intelligence into the device firmware and generates the disposition recommendation in the excursion report.
Food Safety, HACCP & Retail Cold Chain Monitoring
HACCP CCP. FSMA 21 CFR Part 117. Shelf Life Prediction. Q10 Model. GNSS Traceability. -18°C to +40°C.
A temperature excursion in a refrigerated distribution truck that goes undetected produces product that reaches retail shelves; a missed HACCP CCP temperature record creates a regulatory non-conformance that triggers inspection and potentially closure. Ankh designs HACCP CCP monitoring with FSMA 21 CFR Part 117 compliant digital record generation; fresh produce temperature and CO2 monitoring with real-time shelf life remaining calculation; frozen food distribution monitoring at -18°C and below with GNSS position correlation; and refrigerated vehicle monitoring with set-point versus actual temperature and door open detection. Shelf life prediction firmware uses the Q10 temperature coefficient model — Q10 = (R2/R1)^(10/(T2-T1)) — calibrated against product-specific accelerated shelf life testing data, continuously updating estimated remaining shelf life for display at delivery receipt.
Laboratory, Biobank & Ultra-Cold Monitoring
ULT -80°C. LN₂ -196°C Silicon Diode. ICH Q1A Stability. ISO 15189. AABB Standards. EN 15757.
The sensor technology that achieves ±0.5°C accuracy at 5°C has no meaningful accuracy specification at -80°C without specific low-temperature characterisation. Cryogenic monitoring at -196°C requires silicon diode sensors — such as the Lakeshore DT-670 with 1.4K to 500K operating range — that operate where every thermistor, RTD, and temperature sensor IC is outside its operating range. Ankh designs ULT -80°C monitoring with low-temperature-characterised Pt100 sensing; LN2 -196°C monitoring with silicon diode sensors; LN2 vessel liquid level monitoring; dry ice sublimation monitoring; vapour phase LN2 storage monitoring for embryo and tissue banking; and ICH Q1A stability chamber monitoring continuously verifying 25°C/60%RH, 40°C/75%RH, and 30°C/65%RH conditions over multi-year study durations.

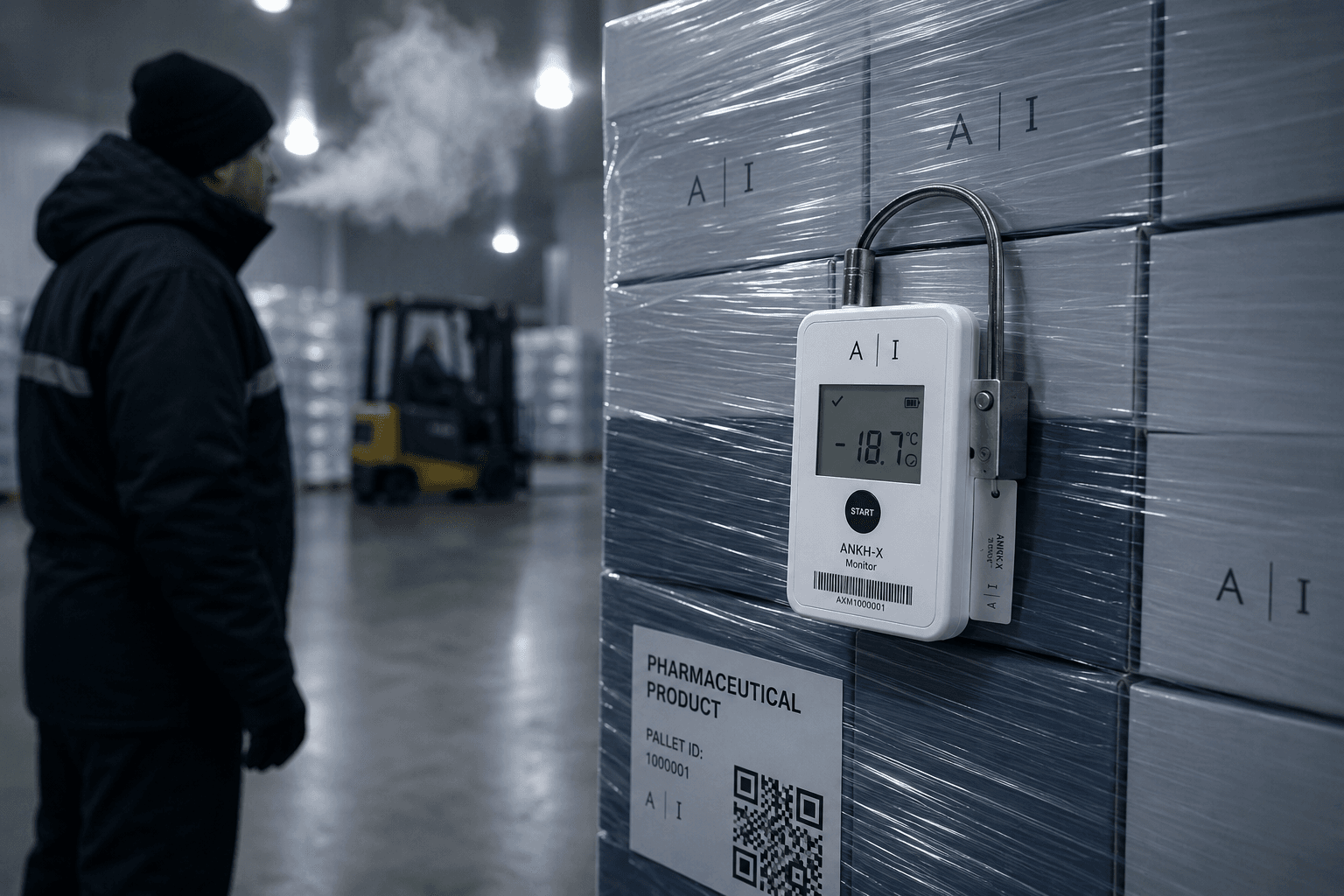

Why Cold Chain Engineering Teams Choose Ankh
Measurement Uncertainty Engineered, Not Specified
A ±0.5°C accuracy claim does not mean the installed device produces readings within ±0.5°C of true temperature. The combined measurement uncertainty budget includes sensor tolerance after calibration, electronics self-heating in still air, thermal gradient between sensor and monitored space, and calibration drift over the calibration interval. Ankh calculates the combined measurement uncertainty budget for the specific logger design, installation configuration, and calibration interval — then designs the sensing architecture, thermal management, and calibration procedure to achieve the required uncertainty for regulatory qualification.
Data Integrity as an Architecture, Not a Feature
21 CFR Part 11 and EU GDP compliance are not met by encrypting stored data. Records must be Attributable to a specific calibrated device, Contemporaneous with the measurement at a synchronised timestamp, Original, Complete with no gaps, and demonstrably Unaltered since recording. Ankh designs cold chain firmware with SHA-256 hash-chained sequential records from device power-on, X.509 certificates provisioned at manufacturing, GPS-synchronised timestamps independent of logger clock drift, and gap detection firmware that flags any discontinuity — regulatory inspection readiness built into the firmware architecture, not the product specification.
Excursion Intelligence, Not Excursion Data
An excursion alert stating the shipment exceeded 8°C is data. An excursion report providing MKT per ASTM E1870 at 83.144 kJ/mol, excursion duration from first threshold crossing to return, stability budget remaining referenced to the product's ICH stability data, and a disposition recommendation is intelligence that supports a release or quarantine decision without additional manual calculation. The Arrhenius-based MKT model integrates temperature-dependent degradation over time — a 12°C peak for 2 hours produces a lower MKT than 2 hours continuous at 10°C, because degradation is integrated, not evaluated at the peak. Ankh builds this intelligence into the device firmware so the quality team has everything needed for the disposition decision in the excursion report.
Calibration Traceability Engineered Into the Manufacturing Process
NIST-traceable calibration is not achieved by calibrating one sample from a production batch and applying the same correction factors to every unit. It requires every unit to be individually calibrated at multiple points with traceable reference standards, correction factors specific to that unit's sensor characteristics, and a calibration certificate tied to that device's serial number. Ankh designs automated production-line calibration fixtures that achieve this at volume without becoming the throughput bottleneck — so every device shipped carries a traceable calibration certificate that an auditor can verify.

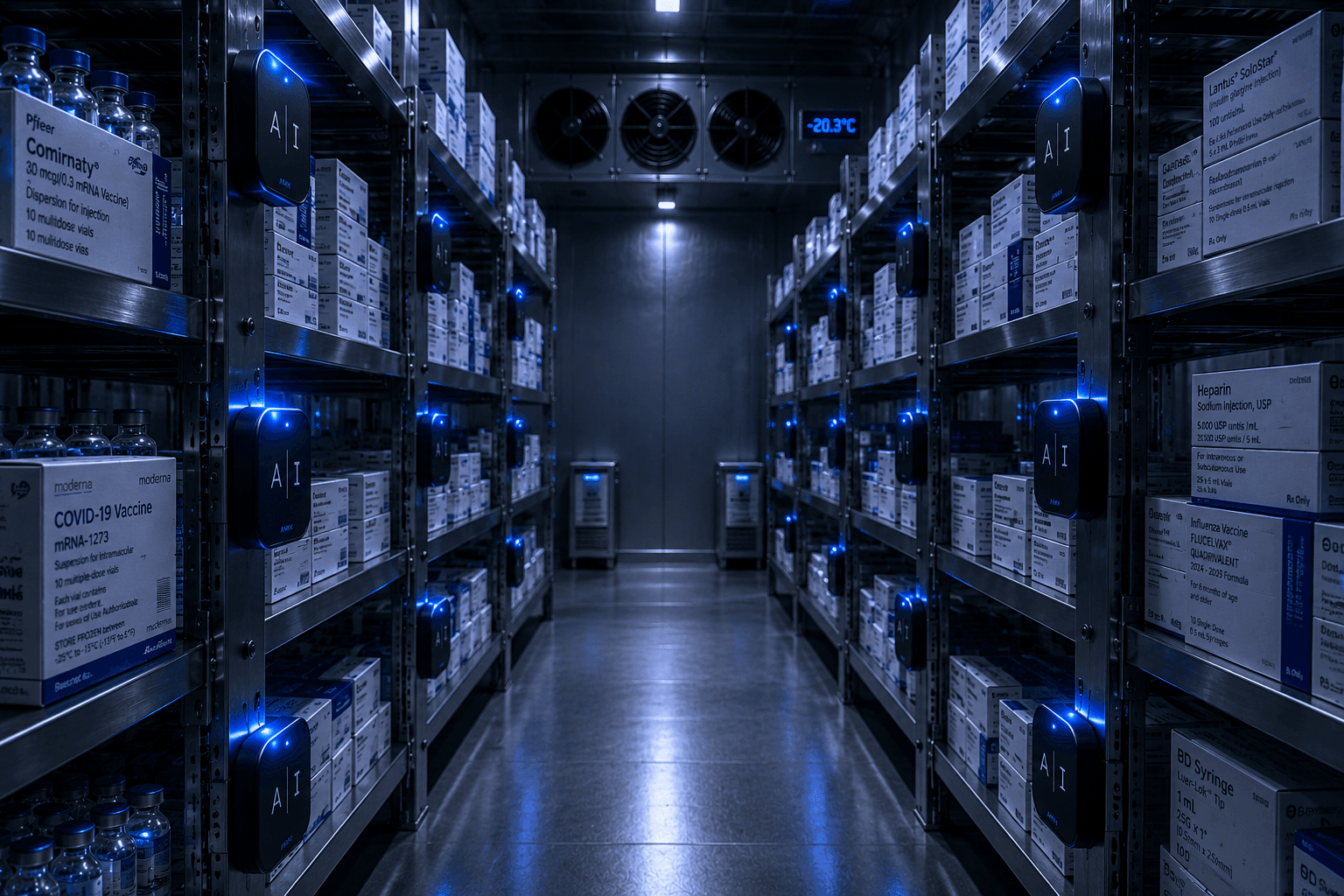

GDP-Compliant Pharmaceutical Distribution Logger — ±0.3°C Uncertainty, 99.97% Data Completeness, 380,000 Shipments
A pharmaceutical cold chain technology company needed a GDP-compliant temperature and humidity data logger with NIST-traceable ±0.3°C combined measurement uncertainty, SHA-256 hash-chained ALCOA+ data integrity for 21 CFR Part 11 and EU GDP, MKT excursion reports in under 30 seconds, and automated manufacturing calibration at volume production scale.
NTC thermistor sensing with 5-point NIST-traceable calibration accounting for sensor tolerance, self-heating, and calibration drift; SHA-256 hash-chained sequential records with GPS-synchronised timestamps and X.509 device certificates; MKT calculation at 83.144 kJ/mol with stability budget and signed PDF excursion report; BLE 5.x and NFC dual-interface; 2-year primary battery life; and automated production-line calibration fixture at 480 loggers per shift with individual NIST-traceable certificates.
- 99.97% data completeness across 380,000 logger-shipments in the first 18 months of commercial deployment
- ±0.3°C combined measurement uncertainty validated from measurement uncertainty budget at 5°C installation temperature
- 21 CFR Part 11 and EU GDP inspection-ready records — zero audit findings in 3 pharmaceutical distributor GDP audits
- MKT excursion report generated in under 30 seconds of BLE connection — zero manual calculation by quality teams
HACCP Cold Chain Monitor with Shelf Life Prediction — 28,000 Loggers, 23% Produce Waste Reduction
A fresh produce logistics company needed a HACCP CCP temperature monitor with real-time shelf life prediction, Q10-based shelf life calculation calibrated against product-specific accelerated shelf life testing, FSMA 21 CFR Part 117 compliant digital records, GNSS position correlation, and LTE-M for real-time excursion alerting.
SHT45 temperature and humidity sensing at ±0.1°C and ±1.5%RH after individual calibration; real-time shelf life remaining firmware using Q10 model calibrated across 12 produce categories; GNSS at 30-second intervals correlated with temperature; FSMA-compliant JSON record generation; BLE 5.x for handheld scanner download; LTE-M for real-time alerting; IP67 enclosure; and 3-year primary battery life at 5-minute interval.
- 23% reduction in produce waste attributed to improved temperature and shelf life visibility across the supply chain
- 97.4% data capture rate across 28,000 loggers in 14-country supply chains
- Real-time shelf life remaining displayed at delivery receipt — zero manual calculation by buying team
- FSMA 21 CFR Part 117 audit documentation generated automatically — zero manual record assembly for FDA inspections
Building cold chain, temperature, or humidity monitoring hardware? Let's keep it in range.
Measurement uncertainty engineered from sensor selection through calibration architecture to deployment environment thermal analysis. Regulatory data integrity as a firmware architecture discipline: SHA-256 hash-chained records, GPS-synchronised timestamps, X.509 device attribution, ALCOA+ compliance from power-on. Full-stack delivery from NIST-traceable calibration through MKT excursion intelligence through GDP-compliant record generation through platform API integration.
