PIPELINE
VALVE & UTILITY
MONITORING
24-bit ADC pressure measurement at sub-0.05% full-scale within IECEx Ex ia entity parameter constraints; NPW leak detection firmware validated to API RP 1175 POD and POFA metrics; DNP3 Level 3 outstation with time-stamped SOE and unsolicited response; solar MPPT and Iridium satellite for remote monitoring; and 7-year primary battery life validated at -30°C.
The Engineering Problem
A Pipeline Monitoring Node Is Not an IoT Sensor — It Is a Safety-Critical Measurement System Operating Under Constraints That Most IoT Firms Have Not Solved Simultaneously
IECEx Zone 1 classification constrains ADC sampling rate, amplifier bias current, and microcontroller clock frequency — all of which directly affect leak detection performance. NPW detection requires pressure sampling at 500 Hz–1 kHz with sub-0.1% accuracy to resolve a 1% flow leak at 5 km — a performance target difficult to achieve within intrinsic safety power budgets. A monitoring device that speaks MQTT when the control room expects DNP3 Level 3 is an island requiring a custom protocol bridge the operations team will spend months commissioning.
PHMSA Mega Rule requirements under 49 CFR Parts 192 and 195, and EN 14161, mandate monitoring density and detection performance expressed in API RP 1175 POD and POFA metrics — not the indicative specs of commercial IoT sensors. Water utilities face pressure to reduce NRW below 15% of system input, driving demand for high-sensitivity DMA boundary and acoustic monitoring electronics. Smart grid and DER integration requirements demand monitoring hardware with IEC 61968/61970 CIM-compatible data models that legacy SCADA cannot support.
We design from the detection requirement and safety classification outward — detection parameters, hazardous area zone, SCADA protocol, and power budget first, then the intrinsic safety circuit, signal conditioning, NPW algorithm, and protocol implementation. This sequence eliminates rework when IECEx entity parameters or SCADA conformance issues surface late. Pipeline operators, water utilities, gas distribution companies, midstream energy companies, and infrastructure technology vendors all need this engineering depth.
Infrastructure Monitoring Categories We Build
From IECEx Zone 1 NPW leak detection nodes to DNP3 Level 3 SCADA outstations to DMA acoustic leak correlators to SIL-rated ESV partial stroke test electronics.
Oil & Gas Pipeline Monitoring Systems
Water & Wastewater Utility Monitoring Electronics
Valve, Actuator & PST Monitoring Electronics
Gas Distribution Network Monitoring
Electricity Distribution & Power Utility Monitoring
Cathodic Protection & Pipeline Integrity Monitoring
Pipeline Metering & Custody Transfer Electronics
AMI, Smart Metering & NRW Analytics Electronics
High-Accuracy Pressure & Flow Measurement
24-bit sigma-delta ADC pressure signal conditioning achieving sub-0.05% full-scale total error band across -20°C to +70°C; high-frequency pressure acquisition at 100 Hz–1 kHz for NPW detection; HART 7 multi-drop master for smart transmitter PV, status, and diagnostics alongside 4-20mA. Differential pressure measurement for orifice and Annubar elements; AGA-7 turbine pulse conditioning; AGA-9 ultrasonic Modbus and HART interface; and electromagnetic flowmeter signal conditioning.
Pipeline Leak Detection Algorithms
NPW detection firmware with configurable amplitude threshold (0.2–2% of MAOP), duration gate for transient rejection, and inter-station propagation velocity correlation for leak localisation via the Joukowsky equation (ΔP = ρaΔV); adaptive threshold tracking for constant false alarm rate under changing operating conditions. False alarm rejection distinguishes pump starts, valve operations, and regulator hunting from genuine leak signals using spectral and temporal feature analysis. API RP 1175 POD, POFA, and detection time metrics calculated for regulatory reporting.
Cathodic Protection & Integrity Monitoring
DC pipe-to-soil potential measurement with >10MΩ input impedance; instant-off potential measurement synchronised to ICCP rectifier interruption per NACE SP0169; AC interference monitoring in high-voltage overhead line induction corridors; ICCP rectifier output monitoring with remote telemetry; CIPS data logger electronics for offline survey collection; and stray current monitoring for electrified railway and HVDC influence zones.

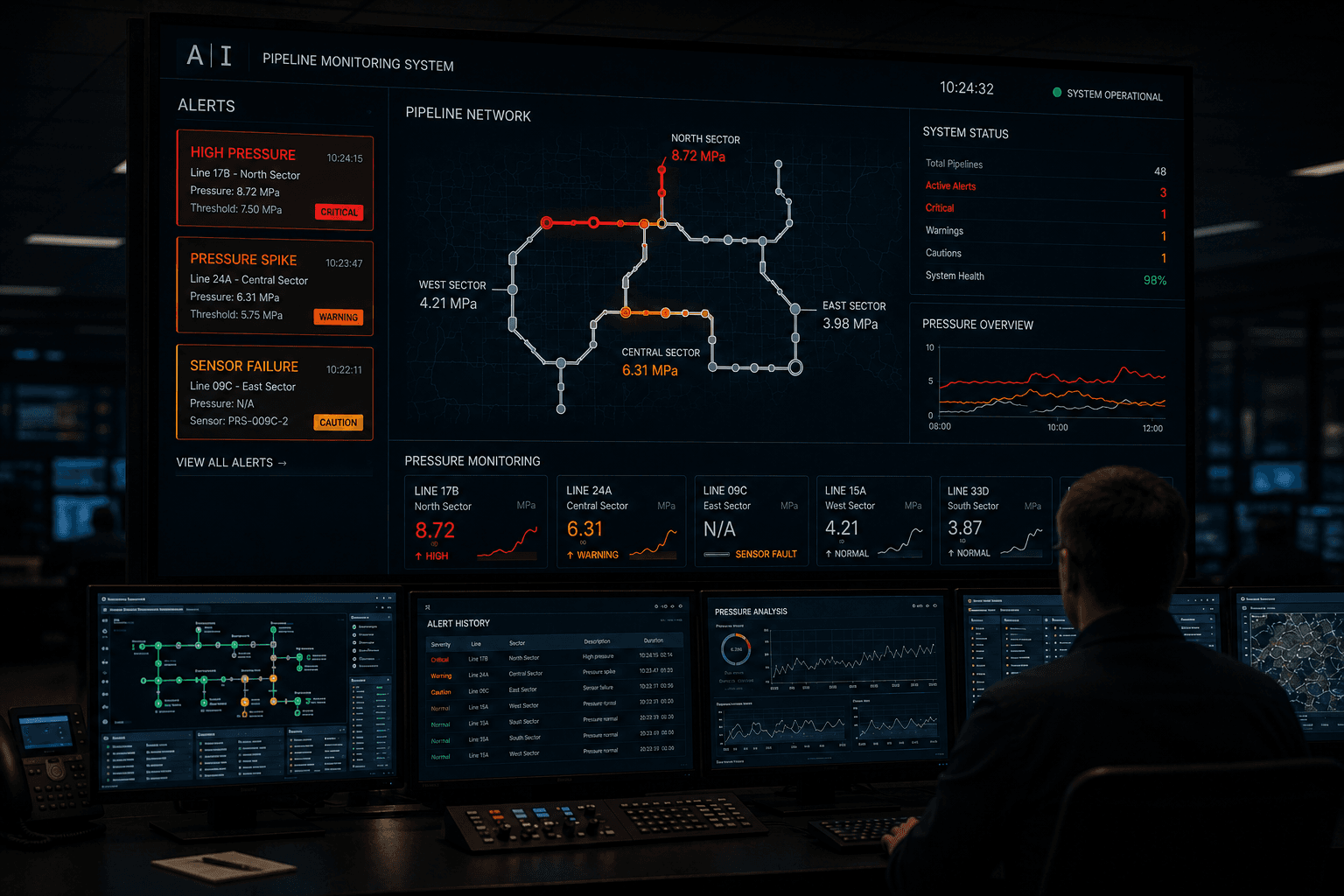

Industrial Protocol & SCADA Integration
DNP3 Level 3 outstation firmware with GPS-synchronised millisecond SOE timestamps, unsolicited response for event-driven alarm delivery, and multi-master support for primary and backup SCADA polling. Modbus RTU/TCP, IEC 60870-5-101/104, HART 7 multi-drop, and OPC-UA server firmware round out the protocol stack for process industry and utility SCADA environments.
Valve & Safety Function Monitoring
IEC 61511-compliant partial stroke test electronics with configurable stroke percentage and abort logic on process upset; SIL-rated valve status output with 1oo2 hardware fault tolerance; valve signature analysis firmware recording torque-versus-position curves for seat wear and actuator degradation detection; ESV proof test monitoring with force and time recording for SIS documentation; and PRV lift detection from downstream pressure transients.
Power Management & Remote Connectivity
Primary Li-SOCl2 power budgets with temperature derating — rated 35,000 mAh at 20°C delivers approximately 14,000 mAh at -40°C; pulse current management during LoRaWAN transmission prevents voltage sag reset of bobbin-cell batteries. Solar MPPT validated against 4-year insolation data; adaptive duty cycle firmware for winter energy balance; LoRaWAN, LTE-M, Iridium SBD, and licensed UHF radio interfaces; GPS time synchronisation for millisecond event timestamps across distributed networks.
Hazardous Area & Environmental Design
IECEx Ex ia Zone 1 intrinsic safety design with entity parameter calculation for every field-side circuit; ATEX Zone 1 Ex ia and Zone 2 Ex ec certification for European gas pipeline applications; gas group and T-class design for the specific pipeline medium. IP67/IP68 enclosure for flooded valve pits and river crossings; IP69K for water treatment jet cleaning environments; -40°C to +70°C operating range; and IEC 61000-4 EMC immunity for monitoring near high-voltage power infrastructure.
Data Management & Platform Integration
Pipeline chainage and GIS coordinate management firmware for spatial correlation with alignment sheet records; ISA-18.2-aware alarm rationalisation firmware; OSIsoft PI System integration via OPC-UA and PI Connector; PIMS data feed for Rosen, Aucerna, and custom platforms; API RP 1175 performance metrics for PHMSA regulatory audit; and event data export in XML and CSV for incident investigation.
Chipsets & Platforms
Platforms, Protocols & Standards
Tested silicon and proven stacks — no experimental platform dependencies.
Oil & Gas Pipeline Leak Detection & Integrity Monitoring
NPW Leak Detection. API RP 1175. IECEx Zone 1 Ex ia. DNP3 Level 3. Iridium Satellite.
PHMSA Mega Rule requires documented POD, POFA, and detection threshold metrics validated against the specific pipeline's hydraulic characteristics — not test bench performance. IECEx Zone 1 intrinsic safety constraints limit the measurement circuit power to what cannot ignite the specific gas group present. At 5 km from a 1% flow leak on a 60 bar pipeline, the NPW amplitude is typically 0.5–3 kPa above a noise floor dominated by compressor pulsation that may be 10× larger. The adaptive threshold, minimum sampling frequency of 20–100 Hz to avoid NPW aliasing, and inter-station propagation velocity calibration are the algorithm choices that determine whether the system achieves the API RP 1175 POD the regulatory filing requires.
Water Utility, DMA Boundary Monitoring & NRW Reduction
Sub-0.5% Flow Accuracy. Acoustic Correlator. Night Flow Analysis. DMA Boundary. IP68.
Reducing NRW from 30% to below 15% of system input volume requires DMA boundary monitoring with sub-1% flow balance resolution and pressure networks sensitive to the transient signature of a 1 litre per second leak in a 200mm main. Acoustic correlators use spatial cross-correlation of signals from adjacent pipe access points; propagation speed — approximately 400 m/s in PE versus 1,400 m/s in cast iron — directly affects correlation peak resolution and location accuracy. Ankh designs acoustic leak detection electronics at the signal processing level: sensor bandwidth, correlation window length, coherence threshold, and pipe material velocity calibration — in IP68 enclosures running on primary battery for 5+ years in flooded valve pits.
Valve Monitoring, PST & Safety System Integration
IEC 61511 PST. SIL-Rated Position Feedback. ESV Proof Test. ISA-18.2.
ESV monitoring electronics are part of a safety instrumented function assessed to a specific SIL level per IEC 61511 — meaning they must contribute no more than a defined PFD to the SIF calculation, must have defined diagnostic coverage, and must generate a safe state output on failure rather than maintaining last value. PST electronics must measure actuator response accurately enough to detect degraded performance before complete failure, complete the test within the tolerance period that avoids operational upset, and generate records for the IEC 61511 proof test management system. Valve signature analysis firmware records torque-versus-position curves during diagnostic strokes, identifying seat fouling and actuator degradation before a valve fails to open or close when commanded.
Why Infrastructure Monitoring Engineers Choose Ankh
NPW Leak Detection Validated in the Deployment Environment
An NPW algorithm that detects a 5% simulated leak on a test rig is not a validated system for a 16-bar gas transmission pipeline where compressor surge, regulator cycling, and slugging all generate pressure waves indistinguishable from a small leak without temporal and spectral discrimination. Ankh designs NPW firmware with configurable detection thresholds, duration gates, and inter-station propagation correlation validated against the specific pipeline's operational transient profile — with API RP 1175 POD and POFA metrics calculated from actual hydraulic characteristics, not a signal generator.
Hazardous Area Compliance as a Measurement Engineering Constraint
In an IECEx Zone 1 installation, the power available from an Ex ia Zener barrier constrains ADC sampling rate, amplifier bias current, and microcontroller clock frequency — all of which affect measurement accuracy and NPW signal bandwidth. Ankh calculates the entity parameter budget at the first schematic review, designs the measurement circuit within it, and validates detection performance before PCB layout — not after the certification agency identifies an exceedance. This is the difference between a Zone 1 node that meets its measurement specification and one that is certified but cannot perform.
DNP3 at Level 3 Outstation Engineering Depth
A DNP3 device that responds to Class 0 polls is a Level 2 device. A useful pipeline monitoring outstation requires Level 3: time-stamped SOE for incident investigators, unsolicited response that delivers alarms within the detection response time budget, multi-master support for primary and backup SCADA without data conflict, and DNP3 authentication for cybersecurity compliance. Ankh implements DNP3 from the Level 3 specification, validated against the conformance test suite, so monitoring devices integrate cleanly into the existing SCADA architecture.
Power System Engineering for the Specific Remote Deployment
A Li-SOCl2 battery rated at 35,000 mAh at 20°C delivers approximately 14,000 mAh at -40°C — and must supply the peak currents during LoRaWAN transmissions that cause voltage sag resets if the load circuit is not designed for bobbin-cell pulse current characteristics. Ankh designs primary battery systems with the specific capacity derating, pulse current management, and end-of-battery voltage detection for the deployment temperature and transmission duty cycle — validated by thermal chamber testing, not the room-temperature datasheet that produces nodes that stop transmitting in winter.
NPW Leak Detection & Distributed Pressure Monitoring — 340 km Natural Gas Transmission Pipeline
A midstream gas operator needed IECEx Ex ia Zone 1 certified distributed pressure monitoring and NPW leak detection across 340 km of 24-inch gas transmission pipeline with PHMSA-documentable API RP 1175 performance, DNP3 Level 3 SCADA integration with Wonderware, cathodic protection at 68 points, and 7+ year primary battery life at -30°C.
24-bit ADC pressure measurement at 0.04% full-scale total error band from -30°C to +60°C within IS entity parameter constraints; NPW firmware with adaptive threshold tracking and inter-station leak localisation; cathodic protection monitoring at 68 points with ICCP rectifier telemetry; Iridium SBD with LTE-M backup; DNP3 Level 3 outstation with Wonderware integration; 7.4-year primary battery life validated at -30°C.
- 89% probability of detection for leaks ≥ 1.5% pipeline flow — POFA < 0.3/day
- 95% of events localised within ±500m of actual release location
- 99.7% data delivery across 340km rural route via Iridium SBD + LTE-M
- API RP 1175 performance documentation filed with PHMSA — zero excavation events in 18 months
DMA Boundary Monitoring & NRW Reduction System — 340 DMA Boundaries, 28% to 14.2% NRW
A water utility targeting NRW reduction from 28% to below 15% needed DMA boundary monitoring with sub-0.5% electromagnetic flowmeter accuracy, acoustic correlator electronics achieving ±1m leak location across multiple pipe materials, and 5+ year primary battery life in IP68 enclosures for flooded valve pit installation.
Electromagnetic flowmeter signal conditioning at sub-0.4% accuracy; acoustic correlator electronics achieving ±0.8m location accuracy validated across 14 pipe materials; night flow analysis firmware synchronising DMA loggers to ±1-second timing; IP68 enclosure with 10-year design life; LoRaWAN at 97.8% data delivery; and 5.3-year demonstrated primary battery field life.
- NRW reduced from 28% to 14.2% within 18 months of network-wide deployment
- ±0.8m acoustic leak location accuracy validated across 14 pipe materials and diameters
- 97.8% LoRaWAN data delivery across 340 DMA boundaries — city gateway infrastructure
- 5.3-year primary battery demonstrated field life in monitored valve pit temperature conditions
Building pipeline, valve, or utility infrastructure monitoring electronics? Let's protect what runs beneath.
NPW leak detection firmware engineered from the Joukowsky hydraulic transient physics. Hazardous area compliance as a measurement design constraint, not a certification process. Full-stack delivery from IECEx-certified sensor interface through DNP3 Level 3 SCADA integration through validated multi-year remote power management.
Quote Your Infrastructure Monitoring Project
