Custom ruggedized display hardware engineered for factory floors, control rooms, outdoor environments, and mission-critical deployments — from embedded display controller to certified enclosure.
The Engineering Problem
Industrial Display Engineering Is Harder Than It Looks
Commercial monitors are engineered for office environments: stable temperature, clean air, no vibration. Industrial environments invalidate every assumption. Continuous factory floor vibration fatigue-fails display driver board solder joints in 18 months. Steel mill control rooms sustain 55°C — well above the 40°C consumer panel limit. An outdoor kiosk in direct Arizona sun receives 1,200 W/m² of solar radiation that renders a 300-nit panel unreadable and thermally loads the enclosure beyond its rated temperature. The deployment environment is the primary engineering constraint, not an afterthought.
A factory HMI speaks EtherNet/IP to a Rockwell PLC, Modbus RTU to a legacy instrument, PROFINET to a Siemens drive, and OPC-UA to a SCADA historian — while running a real-time HMI application with deterministic 500ms alarm response. The display controller must manage backlight dimming and touchscreen calibration without creating EMC noise that trips co-located servo drives. Vehicle-mount hardware must survive MIL-STD-810H 3g continuous vibration and 30g shock, regulate from 9V cold-start to 16V alternator transient, and dim from 1,000 nits in sunlight to 5 nits at night without interfering with the CAN bus.
IP65/IP68 ratings require validated gasket compression geometry and IEC 60529 test cycles of 2–4 weeks. CE marking requires EMC testing to EN 55032/EN 55035, EN 61000-4 immunity, and EN 62368-1 safety — a 6–10 week notified body programme. ATEX Zone 2 certification adds 6–9 months for ignition risk assessment, Ex ec protection concept validation, and type examination. Engineering teams building display hardware for the first time routinely underestimate these timelines. Ankh designs for certification from the first schematic review.
Industrial Monitor Categories We Engineer
Custom display hardware for every industrial deployment environment — from IP68 panel PCs to ATEX Zone 1 operator terminals.
Panel PCs & Embedded HMIs
Operator Interface Terminals
Outdoor & Sunlight-Readable
Vehicle Mount Displays
Rack Mount Industrial Monitors
Open Frame Display Modules
Medical-Grade Clinical Displays
ATEX / Hazardous Area Panels
Display Controller Electronics
LCD/OLED panel driver board design, LVDS and eDP interface, backlight LED driver with MPPT dimming, and timing controller integration from schematic to verified layout.
Ruggedised Enclosure Engineering
IP65–IP68 enclosure mechanical design, gasket geometry and compression specification, MIL-STD-810H vibration and shock analysis, and thermal finite element modelling.
Touchscreen Integration
PCAP, resistive, and infrared touchscreen controller selection and firmware — gloved-hand sensitivity tuning, multi-touch gesture support, and EMI-immune operation near variable-frequency drives.
Embedded Compute Integration
SBC and system-on-module integration for panel PC applications — board-support package development, device tree configuration, and driver development for custom peripherals.
HMI & Embedded Software
Qt-based HMI application development for Embedded Linux and Android, custom widget library, industrial protocol drivers for EtherNet/IP, Modbus, and OPC-UA.
Thermal Management
Fanless thermal design using heat spreader chassis, heat pipe, and phase-change thermal interface materials — validated against full solar and ambient load in climate chamber testing.
EMC & Industrial Power Design
EMC-compliant PCB layout, EMI filtering on all interfaces, wide-range industrial power supply design, and IEC 61000-4 immunity testing support.
Certification Support
IP ingress protection test coordination, CE marking EMC and safety testing, ATEX Zone 1/2 documentation and notified body submission, UL listing support.
Chipsets & Platforms
Platforms We Build Industrial Display Hardware On
Tested silicon and proven stacks — no experimental platform dependencies.

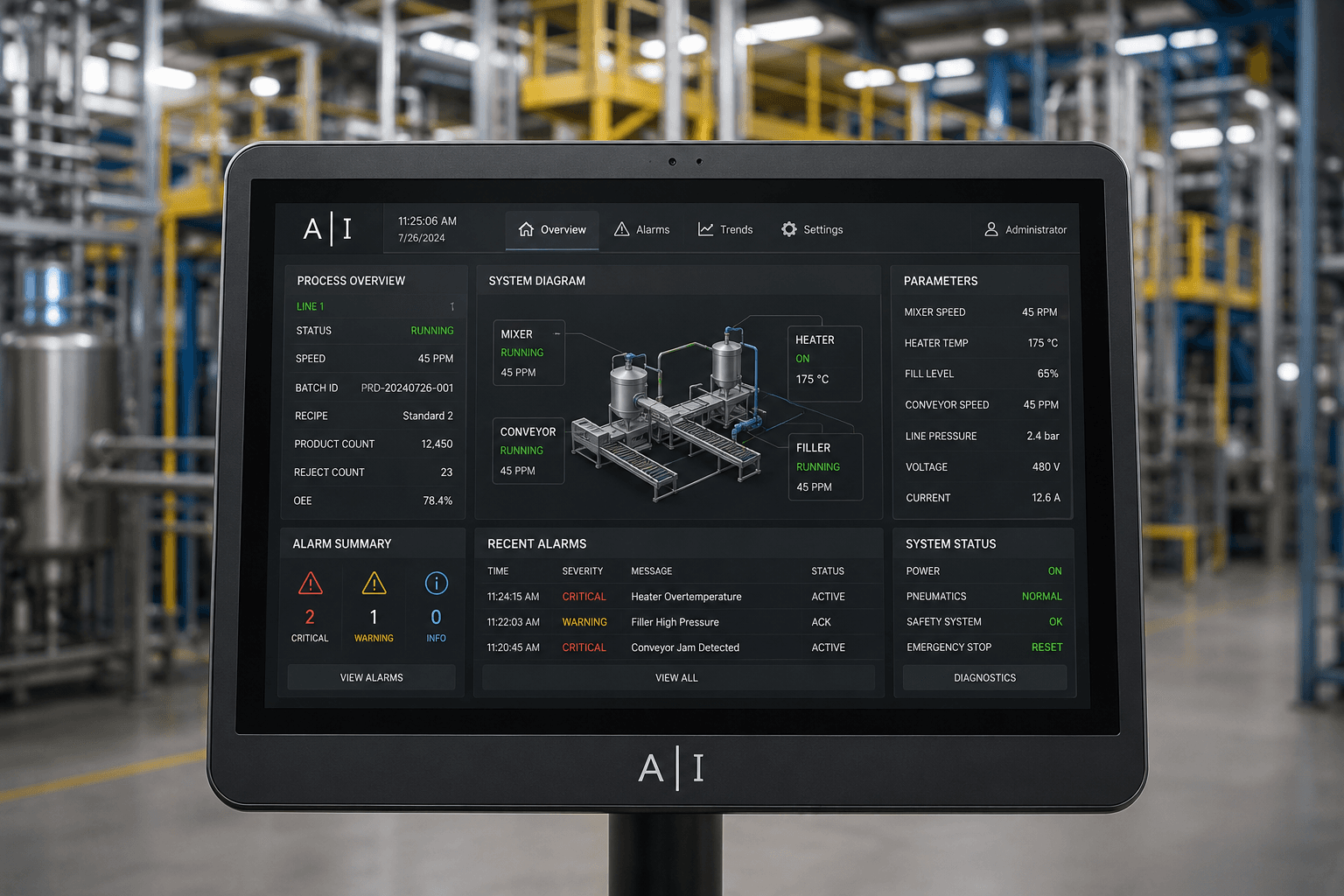

Factory Floor Human-Machine Interface Hardware
The hardest class of industrial display hardware to engineer correctly — because failure is a production stoppage.
A factory HMI that fails mid-shift stops a production line. One that drops touchscreen calibration during a washdown product changeover waits for a technician. One that fails IP65 and admits cleaning fluid destroys the display controller board and typically the host PLC integration with it. Ankh engineers factory HMI hardware from the production environment — not laboratory test conditions. PCAP controllers selected for gloved-hand sensitivity at 0.4–0.8mm nitrile. Fanless chassis conduction cooling to 55°C ambient, eliminating the fan that is the single most common cause of industrial monitor field failure. Conformal-coated display driver boards with BGA underfill for IEC 60068-2-6 vibration resistance. Power supply regulating from 85–264VAC or 9–36VDC without a separate conditioner.
Sunlight-Readable & Outdoor-Rated Display Systems
1,000-nit minimum brightness is the starting point — enclosure thermal management under solar load is the engineering challenge.
A 2,000-nit LED backlight generates 30–40W of heat inside an enclosure simultaneously receiving 1,200 W/m² of direct solar radiation. Without thermal management designed from the first enclosure concept, panel temperature exceeds its rated limit and triggers thermal shutdown at peak summer solar load. Ankh designs outdoor enclosures around a validated thermal model of the complete system: backlight power, solar gain through the front glass, enclosure wall conduction paths, and deployment site ambient distribution. Automotive-grade LCD panels to 85°C panel temperature. Full-face optical bonding eliminates the air gap causing 8% surface reflectance — the primary outdoor contrast failure mode. AR-coated cover glass with sub-0.5% solar spectrum reflectance. Heater elements in front glass for de-icing at −40°C.
Why Engineering Teams Choose Ankh for Industrial Display Hardware
Full Hardware-Firmware-Software Stack
Display controller electronics, embedded firmware, HMI application software, and cloud management — designed as an integrated system by one team, eliminating the integration risk of assembling three separate vendors.
Certification Designed In From Day One
IP, EMC, CE, and ATEX requirements are addressed in the first schematic review, not remediated after prototype failure. Ankh has navigated every major industrial certification path and knows where projects get delayed.
Thermal Engineering Depth
Fanless industrial displays require thermal engineering that most hardware teams underestimate. Ankh models the full thermal system — backlight, solar load, enclosure conduction — before cutting metal, and validates the model in a climate chamber.
Ruggedisation at the Component Level
Conformal coating, underfill on BGA devices, vibration-resistant connector selection, and mechanical constraint analysis of display cable routing — ruggedisation applied at every level of the hardware stack, not just the enclosure.

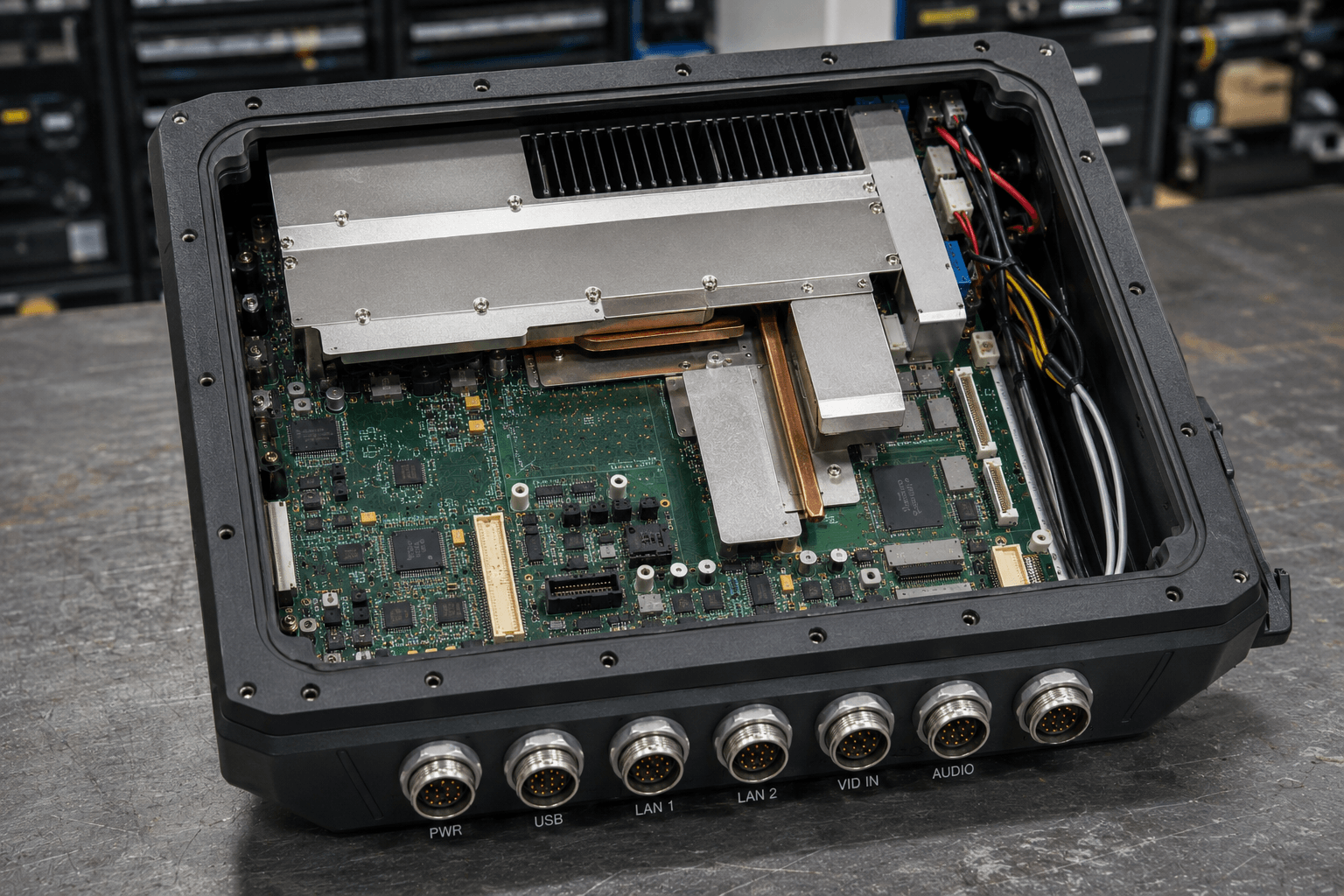

ATEX Zone 2 Operator Terminal for a North Sea Oil Platform
An offshore oil and gas operator needed a Zone 2 ATEX-certified HMI terminal for platform topside installation — 15" PCAP touchscreen, PROFINET connectivity to Siemens S7 PLCs, gloved-hand touch operation, and Ex ec enclosure protection concept. Operating temperature range of −25°C to +55°C with corrosion-resistant marine-grade surface finish.
We developed a custom Ex ec IIC T4 Gc enclosure with a pressurised front-panel cavity for the touchscreen PCB. A STM32-based touchscreen controller provided gloved-hand sensitivity at 0.6mm nitrile glove thickness. Marine-grade 316L stainless enclosure with silicone gasket compression validated at −25°C. PROFINET slave stack integrated on embedded Linux with 1ms cyclic communication. Notified body type examination by BASEEFA with IECEx and ATEX dual certification.
- IECEx and ATEX Zone 2 dual certification achieved in 8 months from first concept
- Gloved-hand PCAP operation validated at −25°C and +55°C
- PROFINET cyclic communication at 1ms cycle time validated with Siemens S7-1500
- 316L marine finish passed 1,000-hour salt spray per ISO 9227
- 34 units deployed across 6 North Sea platforms — 18 months zero field failures
2,000-Nit Outdoor Kiosk Display for a National Transit Authority
A transit authority needed outdoor passenger information kiosk displays rated for direct sunlight operation across 38 city locations — 32" 2,000-nit LCD, IP66 enclosure, optically bonded AR glass, and remote content management via LTE. Operating temperature range of −20°C to +50°C with solar thermal load validation required for NATA accreditation.
We specified an automotive-grade IPS LCD panel rated to 85°C with a custom 2,000-nit LED backlight module. Full-face OCA optical bonding eliminated the air gap reflection and condensation risk. Solar thermal finite element model validated against 1,200 W/m² irradiance showed peak panel temperature of 79°C — within the 85°C limit. LTE-connected Raspberry Pi CM4 ran the content management client on a locked-down Raspberry Pi OS build. Thermostatically controlled heater strips in the front glass maintained operability to −20°C.
- 2,000 nit brightness — readable in direct summer sunlight, photometric report submitted to transit authority
- Peak panel temperature of 79°C validated under 1,200 W/m² solar load
- IP66 ingress protection — water jet test passed at 2m distance, 12.5L/min, all angles
- Remote content management live across all 38 locations within 6 weeks of deployment
- 38 units — 24 months operation with zero display failures
Describe Your Industrial Display Requirements
Panel size, brightness, IP rating, operating temperature range, connectivity, and certifications — tell us what the deployment environment demands and we will engineer the display hardware that delivers it.
