GPS ASSET
LOCATION
TRACKING
Multi-constellation GNSS, LTE-M and NB-IoT cellular, UWB indoor positioning, GSMA SGP.02 M2M eSIM, years-long primary battery firmware, and platform API integration — engineered for the field, not the bench.
The Engineering Problem
Asset Tracking Hardware That Performs in the Field — Not Just on the Bench
A tracker's bench specifications and field performance are entirely different numbers. Battery life at room temperature in open sky means nothing inside a -25°C refrigerated trailer acquiring through a metal roof on a retransmit-heavy NB-IoT network. We design from the actual deployment environment backward — power budget, GNSS strategy, and network attachment time all engineered for where the tracker actually runs.
Indoor-outdoor positioning convergence demands trackers that move seamlessly from GNSS in the yard to UWB on the warehouse floor. GSMA SGP.02 eSIM maturity enables cross-border fleet tracking without SIM swaps. Pharmaceutical GDP intensification requires millisecond-synchronized temperature and GPS records — not two separate data streams correlated in post-processing.
Fleet, supply chain, cold chain, healthcare, construction, and oil and gas programs all need a tracking hardware partner who understands deployment environment performance, power budget engineering, and platform integration at the firmware and API level — not just a module supplier.
Asset Tracking Categories We Build
Tracking electronics across every asset type, environment, and wireless technology.
Vehicle & Fleet GPS Tracking Hardware
Industrial & Facility Asset Location Systems
Container, Cargo & Logistics Tracking
Cold Chain & Temperature-Sensitive Tracking
High-Value & Sensitive Asset Covert Tracking
Oil & Gas & Hazardous Area Tracking
Infrastructure & Geotechnical Monitoring
Military & Government Asset Tracking
GNSS & Positioning Architecture
GPS/GLONASS/Galileo/BeiDou multi-constellation with SBAS, RTK via NTRIP, A-GNSS fast cold start, jamming/spoofing detection, and GNSS duty cycling for multi-year primary battery operation.
Cellular & Wide-Area Connectivity
LTE Cat-M1/NB-IoT with eDRX/PSM power optimization, GSMA SGP.02 M2M eSIM for automatic carrier selection in 100+ countries, MQTT/CoAP/HTTPS cloud protocols, and 2G GPRS fallback.
Indoor Positioning Electronics
UWB two-way ranging for sub-30cm warehouse accuracy, BLE 5.1 AoA/AoD for office and healthcare, Wi-Fi RTT, LoRaWAN TDoA for large facilities, and seamless GNSS-to-indoor handover firmware.
Ultra-Low-Power Firmware
Battery life engineered backward from field deployment requirements — component-level current measurement, adaptive update rate on motion, accelerometer-triggered standby, and Li-SOCl2 vs. LiMnO2 chemistry selection for temperature and pulse current profiles.
Antenna & RF Engineering
Custom GNSS patch and chip antennas for tracker form factor and mounting environment, cellular co-location without inter-band interference, BLE/UWB multi-protocol co-design, and TRP/TIS testing on representative mounting surfaces.
Environmental Qualification
IP67/68/69K, IECEx Zone 2, MIL-STD-810 shock/vibration/thermal cycling, -40°C to +85°C extended range, and UV-stabilized enclosures for multi-year outdoor deployment.
Platform & API Integration
MQTT/REST integration with Samsara, Verizon Connect, Geotab, Trimble, AWS IoT Core, Azure IoT Hub, and Google Cloud IoT — including device provisioning, geofence webhook delivery, and GTFS-Realtime for transit applications.
Sensor Integration & Condition Monitoring
Temperature/humidity for cold chain, accelerometer shock/tilt for cargo condition, door reed switches, J1939 CAN Bus alongside GPS, RFID at tracking points, and load cell interface for weight-with-position records.
Chipsets & Platforms
Platforms & Chipsets
Tested silicon and proven stacks — no experimental platform dependencies.
Vehicle, Fleet & Equipment Tracking
The most mature segment of asset tracking — and the most demanding for a hardware partner to serve credibly.
Fleet specification-to-field gaps are well documented: 4-year battery life becomes 14 months at -20°C, J1939 integration can't reach proprietary OEM PGNs, eSIM requires manual carrier configuration at every border. Dead reckoning illustrates why vehicle tracking requires real sensor fusion engineering — IMU-only heading accuracy degrades over a 400m tunnel transit and produces a visible map jump at exit. Wheel odometer coupling, Kalman filter weighting, and GNSS re-acquisition sequencing all determine whether the track is smooth. We've engineered this at the algorithm level.
Indoor Positioning & Supply Chain Visibility
Sub-30cm accuracy where GPS does not work — and seamless continuity through the dock door.
UWB sub-30cm accuracy in steel-racking warehouses requires CIR-based first-path detection — reflected paths arrive within nanoseconds of the direct path in a racking environment, and selecting peak amplitude instead of first arrival produces systematic ranging error. Anchor geometry, NLOS detection weighting, and WMS coordinate frame transformation must all be correct. Open-space spec compliance is not the same as warehouse deployment accuracy.
Cold Chain, Condition Monitoring & Sensitive Asset Tracking
GPS location alone is not sufficient for pharmaceutical cold chain compliance — and Ankh knows why.
GDP compliance requires temperature and GPS at the same timestamp — not two separate data streams correlated in post-processing. The synchronization must happen inside the firmware's logging architecture, not on a server. Li-SOCl2 delivers 40% less capacity at -20°C than at room temperature, so a tracker claiming 5-year battery life on a room-temperature datasheet may deliver 3 years in a frozen pharmaceutical trailer. We specify and validate cold chain battery life at the actual deployment temperature.
Why Asset Tracking Companies Choose Ankh Innovations
Power Budget Engineering as a Design Discipline
Battery life is determined by GNSS acquisition current, cellular transmit power, component sleep current, battery chemistry temperature coefficient, and deployment temperature — not tuned in firmware after the hardware is built. We build the power budget at the first architecture review and validate it in a thermal chamber before the design is committed.
Deployment Environment Performance, Not Bench Performance
GNSS sensitivity through metal enclosures, cellular antenna performance at real crew installation angles, BLE accuracy in steel-racking warehouses, NB-IoT attach time in under-optimized carrier regions — we characterize performance in the actual deployment environment, not an anechoic chamber.
Multi-Technology Seamless Positioning Across Environments
Supply chain visibility breaks at the yard-to-dock-to-warehouse boundary. We design the handover firmware and platform data model that maintains continuous location across technology transitions — GNSS outside, BLE at the perimeter, UWB at pallet granularity inside — without location voids.
Platform Integration Built In, Not Bolted On
Samsara, Verizon Connect, Geotab, and Trimble each have specific onboarding processes, data formats, and API authentication models that must be implemented in tracker firmware before the first location event appears. We build platform integration as part of the development program — not as a post-delivery project.

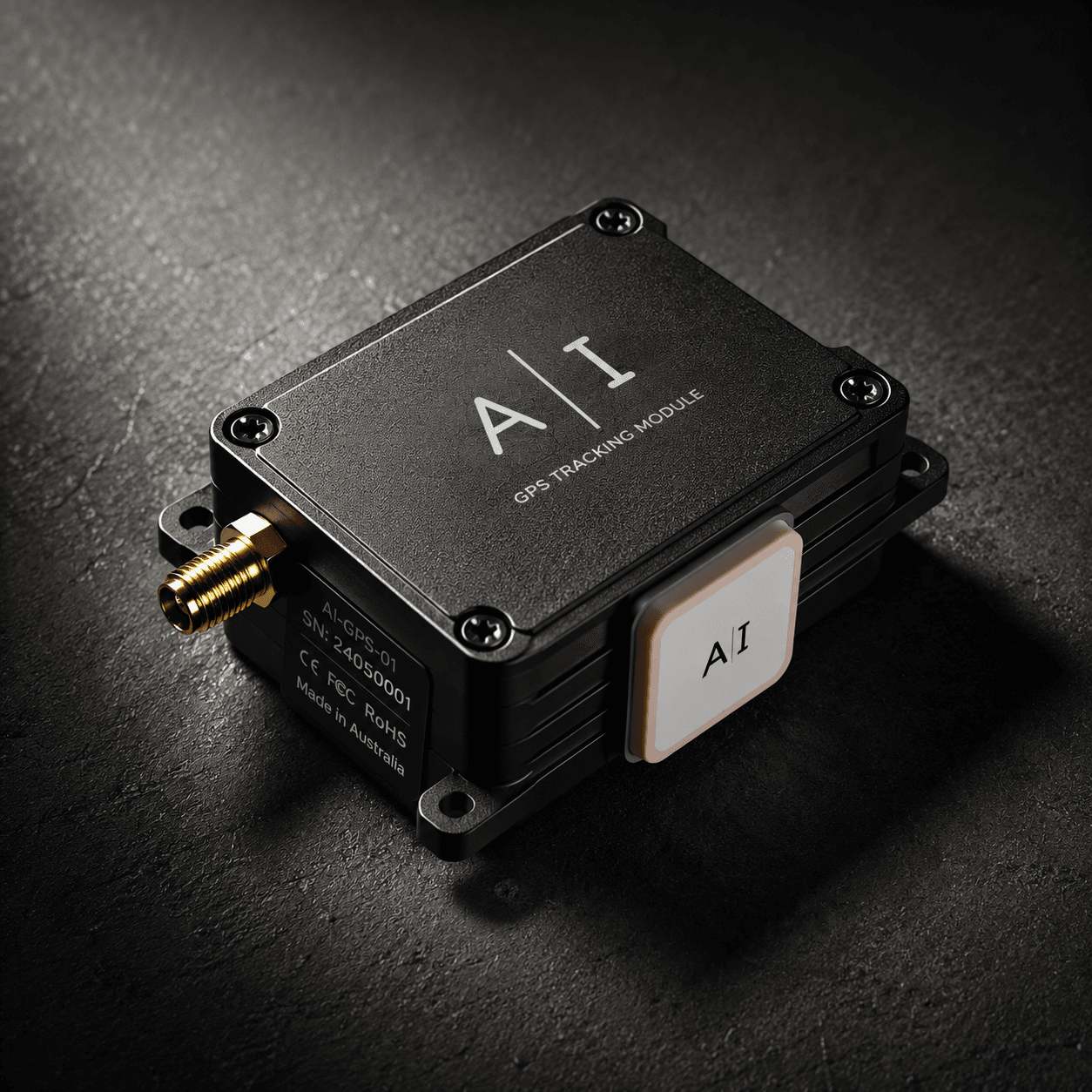

Multi-Year Battery Asset Tracker for a Global Logistics Company
A global logistics company needed a primary battery intermodal container tracker — multi-constellation GNSS, LTE-M with global eSIM, door/shock monitoring, and 5-year life across -25°C to +55°C, with Oracle WMS and Samsara REST API integration at first deployment.
Li-SOCl2 with a thermal derating model validated at four temperatures over 12,000 simulated update cycles. GSMA SGP.02 eSIM achieved automatic carrier connection in 94 countries. Power state machine: 18µA average between updates — 6s GNSS hot start, 8s LTE-M transmit, 23-hour sleep at 0.5µA.
- 5.4-year demonstrated battery life across target temperature range
- Automatic carrier connection in 94 countries without manual SIM management
- Sub-5-second door open alert transmission
- Oracle WMS and Samsara API integration live at first deployment
- Validated across 12,000 container deployments over 18 months field operation
UWB Real-Time Location System for a Pharmaceutical Distribution Centre
An 85,000 m² pharmaceutical distribution centre needed sub-50cm pallet accuracy across 6 temperature zones for EMA GDP audit compliance, with simultaneous position-temperature records and Oracle WMS/SAP EWM integration.
340 UWB anchor nodes with IP68-rated housings covering all 6 zones including -25°C frozen storage. BLE-to-UWB seamless handover from GNSS yard tracking through dock door. Temperature synchronized to UWB position within 50ms at each GDP data point.
- Sub-30cm pallet position accuracy validated across 14,000 pallet positions
- Simultaneous temperature-position GDP data records for all 6 temperature zones
- Oracle WMS and SAP EWM real-time inventory location integration live
- EMA GDP audit submissions generated directly from tracking platform
- 12-week full facility commissioning across all 6 temperature zones
Building a GPS or Asset Tracking Device?
Power budget engineering from battery backward. Deployment environment performance validation. Full-stack delivery from GNSS hardware through platform API integration. Let's find it.
Quote Your Tracking Project
