IEC 62053-22 Class 0.5S active energy accuracy with CT saturation analysis for high-harmonic environments; IEC 61000-4-30 Class A power quality analysis with harmonic measurement to the 63rd harmonic; ASHRAE 135 BACnet Accumulator objects and DLMS/COSEM Electricity Metering data model for utility-grade integration; OCPP 2.0.1 MeterValues for EV charge point billing; and 96-channel building sub-metering for ISO 50001 and BREEAM certification.
The Engineering Problem
The Gap Between Measuring Energy and Measuring It Accurately Enough Is the Entire Engineering Challenge
A CT whose burden is specified for rated current saturates during the peaks of a 40% THD waveform, introducing 2–4% error that a Class 0.5S specification does not permit. A three-phase meter that sums three single-phase measurements without correctly applying the two-wattmeter method produces systematically wrong readings in a delta system. An energy meter accurate at unity power factor but introducing 2.5% error at 0.5 lagging — because anti-alias filter group delay phase shift was not compensated — reports correctly in testing and incorrectly in the field. These are the errors energy monitoring projects discover at commissioning or after a year of wrong energy reporting.
Mandatory half-hourly sub-metering and GHG reporting requirements — ISO 50001, ESOS, and equivalents — demand circuit-level granularity that utility revenue metering cannot achieve at installation cost and scale. Grid decarbonisation drives simultaneous demand for solar PV string monitoring, battery storage state monitoring, EV load management, and bidirectional import-export metering that legacy power monitoring hardware was not designed to address. Hyperscaler and enterprise data centres require per-rack and per-PDU monitoring with the real-time update rate DCIM platforms need for dynamic load optimisation.
We design from the accuracy requirement, measurement application, and platform integration specification outward — accuracy class, required parameters, conductor geometry, and the platform the energy manager already uses first, then CT burden design, signal conditioning noise floor, ADC resolution, power calculation algorithm, and calibration procedure. Energy management technology companies, smart building vendors, utility metering vendors, renewable energy and EV charging infrastructure companies, and power quality technology vendors all need this engineering depth.
Power & Energy Monitoring Categories We Build
From IEC 62053-22 Class 0.5S revenue-grade sub-meters to IEC 61000-4-30 Class A power quality analysers to OCPP 2.0.1 EV charge point metering to DLMS/COSEM utility smart meters.
Building & Facilities Energy Sub-Metering Hardware
Industrial Power Quality & Energy Monitoring Systems
Utility Revenue & Revenue-Grade Metering Electronics
Solar PV, Renewable & Battery Storage Monitoring
EV Charging Infrastructure Energy Metering Electronics
Data Centre & Critical Facility Power Monitoring
Grid-Edge Distribution & Secondary Substation Monitoring
AMI, Smart Metering & Interval Data Electronics
Current Sensing & CT Engineering
Split-core and solid-core CT design from Class 5 to Class 0.1S; CT burden resistor design with saturation analysis for high-harmonic waveforms where peak current significantly exceeds RMS; Rogowski coil design for high-frequency harmonic measurement above 2.5 kHz and irregular conductor geometry; Hall effect sensors for DC-inclusive current measurement in EV charging and battery storage. Current sensing IC selection — ADE7758, ADE9153A, ADE9000, CS5480, ATM90E32AS — matched to required power calculation hardware acceleration.
Voltage Sensing & Isolation
Resistive voltage divider design with matched-TC precision resistors for LV direct measurement; isolation amplifier voltage sensing (AMC1311, SI8920) for reinforced insulation between grid voltage and metering electronics; potential transformer interface for medium voltage monitoring; balanced three-phase voltage sensing with common mode rejection; and neutral voltage reference sensing for four-wire wye, three-wire delta, and split-phase wiring configurations.
Power Calculation & Energy Accumulation
Real-time active power calculation with anti-alias filter group delay compensation for accurate phase alignment; reactive power via 90° phase shift and DFT methods with cross-validation; fundamental, displacement, and true power factor; three-phase calculation for balanced and unbalanced loads in three-wire and four-wire configurations; 64-bit energy accumulator; bidirectional accumulation for import-export metering; and half-hourly interval data with NTP synchronisation for energy reporting.
Accuracy Classification & Calibration
IEC 62053-21 Class 1 and Class 2 compliance testing across the full current and power factor test matrix; IEC 62053-22 Class 0.5S and Class 1S static billing meter accuracy; IEC 62053-23 Class 2 reactive energy; ANSI C12.20 Class 0.2 and Class 0.5 for North American revenue metering. Factory calibration with NIST-traceable standards; multi-point gain and offset correction; temperature coefficient compensation -20°C to +70°C; and production-line automated calibration fixture.
Power Quality Analysis
IEC 61000-4-30 Class A measurement for utility-grade voltage variation, harmonic, flicker, dip, swell, and interruption monitoring; IEC 61000-4-7 harmonic grouping from fundamental to 63rd harmonic; IEC 61000-4-15 flickermeter for Pst and Plt per EN 50160; voltage dip and swell characterisation per SEMI F47; transient waveform capture at 10 kHz; and SARFI calculation for distribution network power quality management.
Industrial & Utility Protocols
Modbus RTU and TCP with SunSpec 701 and 802 register maps; BACnet/IP and MS/TP with ASHRAE 135 Accumulator, Analog Input, and Analog Value objects for BMS-native energy integration; M-Bus EN 13757 for European utility metering networks; DLMS/COSEM IEC 62056 with Electricity Metering Register, Demand Register, and Load Profile objects; IEC 61850 GOOSE and MMS for substation automation; DNP3 Level 3 for utility SCADA; and OCPP 1.6J and 2.0.1 MeterValues for EV charge point billing.
Sub-Metering Network Architecture
12, 24, 48, and 96-channel CT bus architecture for panel sub-metering from a single metering unit; RS-485 Modbus multi-drop meter bus for distributed sub-meter networks; wireless sub-metering with Zigbee, Wi-Fi, LoRaWAN, and NB-IoT for retrofit installations; CT bus wiring design with inter-channel crosstalk analysis for long cable runs; and NTP and GPS time synchronisation across multi-meter networks for accurate interval data alignment.
Renewable Energy & EV Monitoring
Solar PV string current monitoring for individual string fault and shade detection; SunSpec Modbus 701 and 703 register map for multi-brand inverter portfolio normalisation; DC arc fault detection for NEC 690.11 and IEC 62109 compliance; bidirectional AC energy monitoring for solar plus storage import-export; OCPP 2.0.1 MeterValues per-connector metering for EV charge point billing; and V2G bidirectional energy metering.
Chipsets & Platforms
Platforms, ICs & Standards
Tested silicon and proven stacks — no experimental platform dependencies.
Revenue-Grade Metering, Power Quality & Industrial Energy Monitoring
IEC 62053-22 Class 0.5S. IEC 61000-4-30 Class A. Harmonic Analysis. Demand Monitoring. Calibration Traceability.
A Class 2 meter where Class 0.5S was required overcharges one tenant and undercharges another by up to 2% of annual energy bill — a direct commercial consequence. A CT whose magnetic core saturates during the peaks of a distorted waveform clips secondary current output and introduces harmonic components not present in the primary — distorting both RMS measurement and phase relationship. The CT burden design trade-off between accuracy at rated current and saturation in high-crest-factor waveforms is what separates a Class 0.5S meter designed for real VFD-rich environments from one designed for ideal sinusoidal current. Ankh implements IEC 62053-22 Class 0.5S, IEC 61000-4-30 Class A harmonic analysis to 63rd harmonic, flickermeter Pst and Plt, and SEMI F47 / EN 50160 dip and swell classification, validated against the specific IEC and IEEE test matrices.
Building Sub-Metering, Smart Building & EV Charging Monitoring
96-Channel. BACnet Accumulator Objects. Wireless Retrofit. OCPP 2.0.1. SunSpec 701.
Mandatory half-hourly energy reporting and the physical impossibility of retrofitting revenue-grade sub-metering to every circuit in a 30-year-old building without reconstructing panels are simultaneous pressures that off-the-shelf products cannot resolve. Installing a Rogowski coil on a 95mm² busbar with no space for a split-core CT, or adding OCPP 2.0.1 per-connector metering to a charge point designed before OCPP 2.0.1 was finalised, are engineering problems requiring custom hardware. Displacement power factor is what capacitor banks correct; true power factor including all harmonics determines whether reactive energy penalties actually disappear after capacitor bank installation — a distinction that requires monitoring firmware designed for the specific tariff clause being addressed.
Renewable Energy, Grid-Edge & Utility AMI Monitoring
SunSpec. DLMS/COSEM Electricity Metering Object Model. IEC 61850 GOOSE. NB-IoT AMI.
A distribution transformer that historically loaded at 45% of rated capacity now peaks at 115% on summer afternoons when EVs charge and air conditioners run simultaneously — and the utility without real-time transformer loading monitoring has no early warning of asset overloading. A solar PV portfolio of 400 rooftop installations generates production data from 400 different Modbus servers with up to 12 different SunSpec register map implementations. A utility smart meter must implement DLMS/COSEM at the COSEM object model level — Register, Extended Register, Demand Register, and Load Profile objects — with correct access rights, authentication challenge-response, and IEC 62056-6-2 encrypted communication; not just the communication transport layer.
Why Energy Monitoring Engineering Teams Choose Ankh
Accuracy Class as an Engineering Specification, Not a Marketing Claim
IEC 62053-22 Class 0.5S requires active energy error below 0.5% from 5% to 120% of rated current, at power factors from 0.5 lagging to 1.0, across the full operating temperature range. Meeting this requires CT burden design that avoids saturation in high-harmonic waveforms, ADC resolution sufficient to resolve the accuracy target, and anti-alias filter phase compensation between current and voltage channels. Ankh designs to the specified IEC accuracy class from the first schematic — accuracy is validated before PCB manufacture, not discovered inadequate at the compliance test campaign.
Three-Phase Power from the Electrical Engineering, Not Three Single-Phase Measurements
A three-phase four-wire unbalanced load requires simultaneous sampling of three voltage and three current channels with phase-aligned ADC timing and correct phasor arithmetic for active, reactive, and harmonic components. A three-wire delta system requires the two-wattmeter method — a meter designed for four-wire systems produces systematically incorrect readings in delta. Ankh designs three-phase energy monitoring firmware for the specific wiring configuration of the installation, validated against the actual wiring topology the customer operates.
Protocol Implementation at the Object Model Level
A BACnet/IP meter that simply appears on the network is not the same as one that implements the ASHRAE 135 Accumulator object type with correct Present Value, Units, Scale, and Prescale properties — which is what lets the BMS integrator map 96 circuits to the existing point database without custom configuration. Ankh implements energy monitoring protocols at the object model level — ASHRAE 135 Accumulator for BACnet, DLMS/COSEM Electricity Metering data model for utility interfaces, SunSpec 701 and 703 for solar — so integration requires configuration, not development.
Sub-Metering Network Architecture for the Installation Reality
A 96-channel sub-metering installation requires 96 CTs in a panel where breakers are spaced at 9mm and incoming cables are 95mm² requiring 200A CTs with 60mm cores. The CT bus wiring must be routed to avoid EMI coupling between current channels. The RS-485 Modbus bus from 24 sub-meters across 8 floors must achieve reliable communication against the EMI of a building full of VFDs and fluorescent dimmers. Ankh designs sub-metering systems for the physical constraints of the actual building, not topology diagrams that assume every panel is adjacent to a data closet.

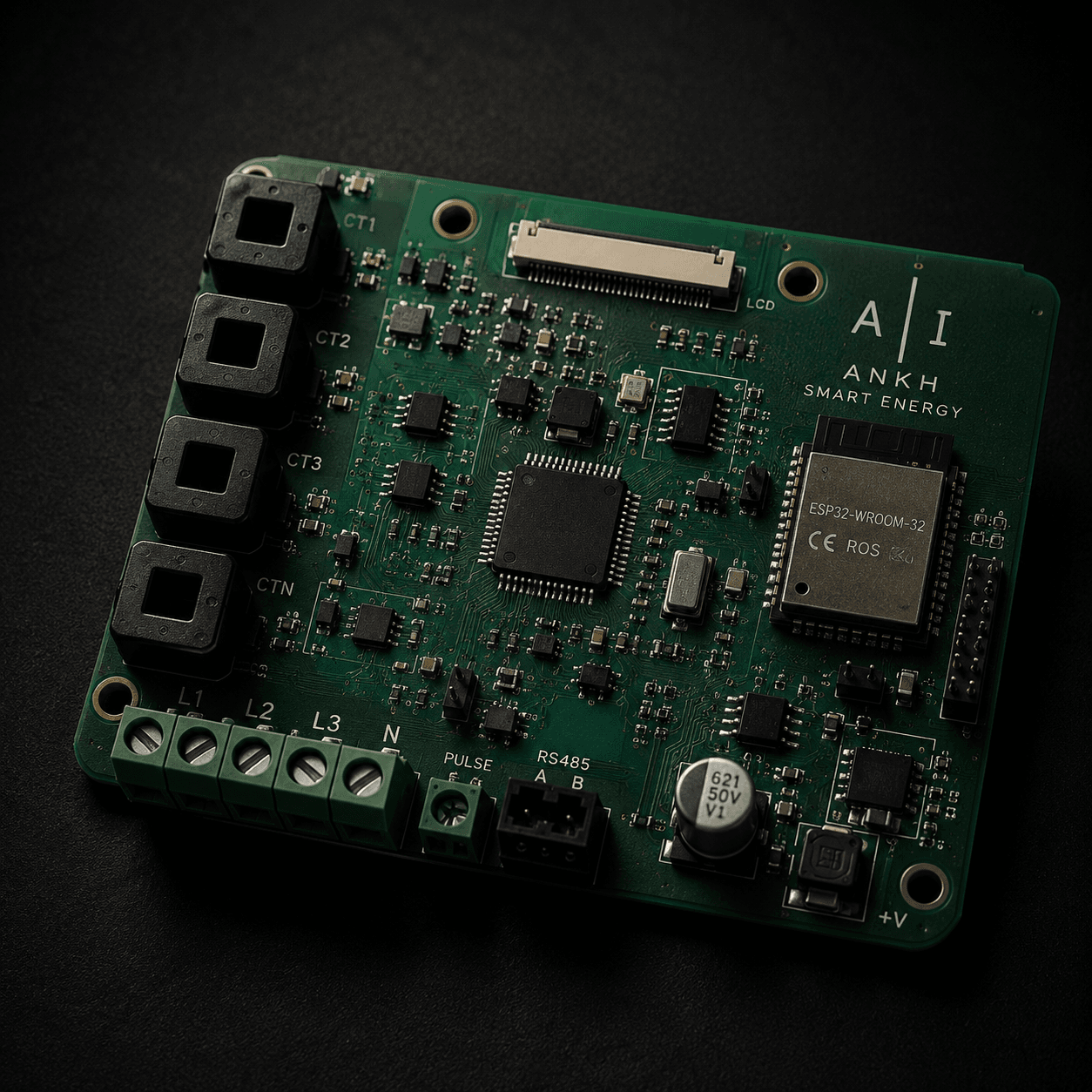

96-Channel Building Sub-Metering System — ISO 50001 & BREEAM Excellent, 28-Storey Office
A commercial property developer needed a 96-channel panel sub-metering system for a 28-storey office building targeting ISO 50001 and BREEAM Excellent — requiring IEC 62053-21 Class 1 accuracy, BACnet/IP with ASHRAE 135 Accumulator objects, half-hourly interval data with NTP synchronisation, and Rogowski coil interface for busbar circuits where split-core CTs were impractical.
ADE9153A per-channel metering ICs achieving IEC 62053-21 Class 1 accuracy; Rogowski coil interface for 7 busbar circuits; BACnet/IP gateway with ASHRAE 135 Accumulator objects mapping 96 circuits to the BMS point database without custom integration; half-hourly interval data with NTP synchronisation to ±100ms; Modbus TCP sub-meter bus across 12 floors; and Zigbee mesh wireless sub-metering for 12 tenant fit-out circuits.
- ISO 50001 certification and BREEAM Excellent achieved within 6 months of building occupation
- 99.94% Modbus sub-meter data completeness — 12 months, 24 distributed meters, 12 floors
- BACnet Accumulator objects — zero custom BMS integration code required at commissioning
- IEC 62053-21 Class 1 accuracy validated across full current and power factor test matrix
IEC 61000-4-30 Class A Power Quality Monitor Network — 34 Points, 94% of Production Stoppages Resolved
An automotive plant with unexplained production stoppages needed a Class A power quality monitor network across 34 points with GPS-synchronised timestamps, SEMI F47 compatibility assessment for 340 equipment types, harmonic analysis to 63rd harmonic, and OSIsoft PI integration for event correlation with production stoppage records.
IEC 61000-4-30 Class A with GPS-synchronised timestamps; SEMI F47 compatibility assessment for 340 equipment types; harmonic analysis to 63rd harmonic per IEC 61000-4-7 grouping method; flickermeter Pst and Plt; 10 kHz waveform capture; and Modbus TCP integration with OSIsoft PI historian.
- 94% of previously unexplained production stoppage events identified and resolved within 6 months
- 17th and 19th harmonic injection at 340% of IEEE 519 limit identified — traced to 18-pulse VFDs
- Arc welder flicker identified as source of PLC reset events from Pst and Plt correlation
- Sub-1ms GPS timestamp synchronisation across all 34 monitoring points for inter-site correlation
Building power consumption, grid, or energy monitoring hardware? Let's measure what matters.
IEC accuracy class as an engineering specification from CT saturation analysis through NIST-traceable calibration validation. Three-phase power measurement from the electrical engineering for the actual wiring configuration. Full-stack delivery from current sensing through power calculation algorithm through protocol object model integration through sub-metering network commissioning.
